Products & Services

We have showed a remarkable presence as a manufacturer cum exporter of various types of Air Compressors and Garage Equipments for different applications. We manufacture following line of Service Station Products:
  •     Washing Lifts for Cars / Trucks / Three Wheelers ( 4, 8 and 16 Tons capacity )
  •     Robotic Car wash & Under Chassis Washer
  •     Vehicle Washers - 22 Bar to 100 Bar presure
  •     Air Compressors - 5 CFM to 40 CFM
  •     Pneumatic Grease pumps
  •     Hand Operated grease pumps
  •     Shampoo Pumps
  •     Engine Crane
  •     Digital Tyre Inflators

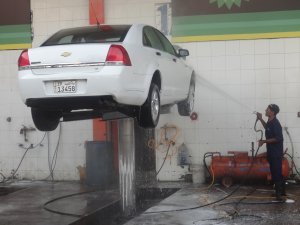

Single Post Lifts

Single_Post_Lifts

Technical Specification

S. No. Parameter BP-04 BP-08
1. *Lifting Capacity - Tons approximately
 4.0 8.0
2. Number of plungers One One
3. Lifting Height (mm) 1500 1500 1700 ( Optional )
4. Pressure Required (Kg/sq.cm) 9-12 10-15
5. Platform Size(mm) 4500 x 700 5500 x 820
6. Oil Reccvier capacity (litres) 150

175

*- Lifting capacity will vary according to the Air pressure and the Load-distribution

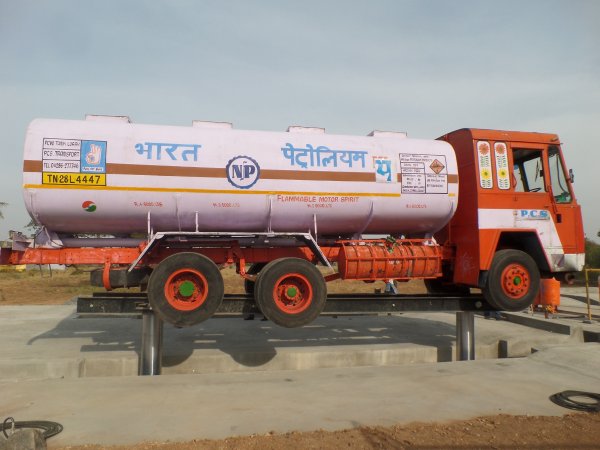

Twin Post Lifts

Twin_Post_Lifts

Technical Specification

S. No. Parameter 2BP - 08 2BP - 16
1. *Lifting Capacity(Tons) approx 8.0 16.0
2. Number of plungers TWO TWO
3. Lifting Height (mm) 1500 1500 1700 ( Optional )
4. Pressure Required (Kg/sq.cm) 9-12 10-15
5. Platform Size(mm) 7200 x 820 7600 x 900
6. Oil Reccvier capacity (litres) 150 x 2 175 x 2
*- Lifting capacity will vary according to the Air pressure and the Load-distribution

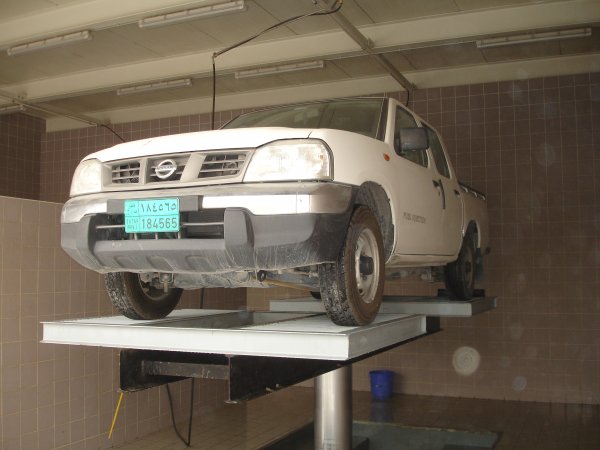

TRP Lifts

TRP Lifts_1

Technical Specification

S. No. Parameter BP - 04 -TRP BP - 08 - TRP
1. *Lifting Capacity 4.0 8.0
2. Number of plungers One One
3. Lifting Height (mm) 1500 1500 1700 ( Optional )
4. Pressure Required (Kg/sq.cm) 9-12 10-15
5. Platform Size(mm) Length     - 4500 / 3500 Length     - 4500
TRP Size - 2000 x 1500 - 2Nos for Exports TRP Size - 2000 x 1500 - 2Nos
6. Oil Reccvier capacity (litres) 150 175
*- Lifting capacity will vary according to the Air pressure and the Load-distribution

Triple Plungers

triple_3

Technical Specification

S. No. Parameter Model
BW 01 / 22 / 3 BW 03 / 45 / 3 BW 03 / 35 / 3
1. Output per gun (LPM) 11 15 8
2. Working pressure ( Kg/sq.cm) 22 45 35
3. No. of hose & gun 1 1 2
4. No. of plungers 3 3 3
5. Motor H.P. 1 3 3
6. RPM 450 350 350
